Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

Model NO.: No. NM
Cast Iron Support and Gear Box: Qt450-10
Gasket (Standard): EPDM
Mechanical Seal (Standard): C/Sic/EPDM
Internal Surface Finish: Ra Is Less Than or Equal to 0.6 Micrometer.
External Suface Finish: Mirror Polish
Trademark: NUOMENG, OEM
Transport Package: in Carton, Plywood Case
Specification: DIN, 3A, SMS, ISO, RJT, BPE, JTS
Origin: Wenzhou, China
Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

Application:
*Hygienic Lobe pump (rotor pump) is a positive displacement lobe rotor pump, it was designed according to 3A standard
 *with a very strict hygienic requirments to equipment and processes, so this pump is easily cleaned and maintenanced.
*The pump is ideal for the transfer of viscous as well as low-viscous media in the food-processing, cosemtics and pharmaxeutical industries.

Materials:
Investment casting casing:AISI 316L/AISI 304
Cast iron support and gear box:QT 450-10
Gaskets(standard):EPDM
Mechanisal seal (standard)C/SIC /EPDM
Internal surface finish:Ra<0.6ηm
External surface finish: mirror polish

Connections :clamp thread flange ,welding Motor type B5
4poles motor
Motor frequency: 50HZ .60HZ
Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump
Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

Technical specification:
Types L/100 rev Entrance A B C C1 D D1 E E1 F F1
TUL/TUR-20 9.96 1"/DN25 215 172 222 252 123 145 100 95 125 120
TUL/TUR-23 18.7 1.5"/DN40
TUL/TUR-25 25.6 2"/DN50
TUL/TUR-30 43.4 227 184 270 288 149 175 125 155
TUL/TUR-35 54.3 2.5"
TUL/TUR-55 59.3 DN65 240 295
TUL/TUR-60 65.3 3" 227 288
TUL/TUR-70 128 303 260 387 407 221 256 193 233
TUL/TUR-80 164 DN80 316 414
TUL/TUR-100 208 4"/DN100 303 407
TUL/TUR-125 260 5"/DN125 316 414
Types G H I J K K1 L L1 M M1 N N1
TUL/TUR-20 332 291 52 153 100 115 19 15 132 146 107 105
TUL/TUR-23 346
TUL/TUR-25 356
TUL/TUR-30 457 381 60 146 125 170 30 18 181 210 140 146
TUL/TUR-35 465
TUL/TUR-55 474
TUL/TUR-60 476
TUL/TUR-70 540 464 80 281 208 32 275 150 129
TUL/TUR-80 469
TUL/TUR-100 480
TUL/TUR-125 493


Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump
Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump

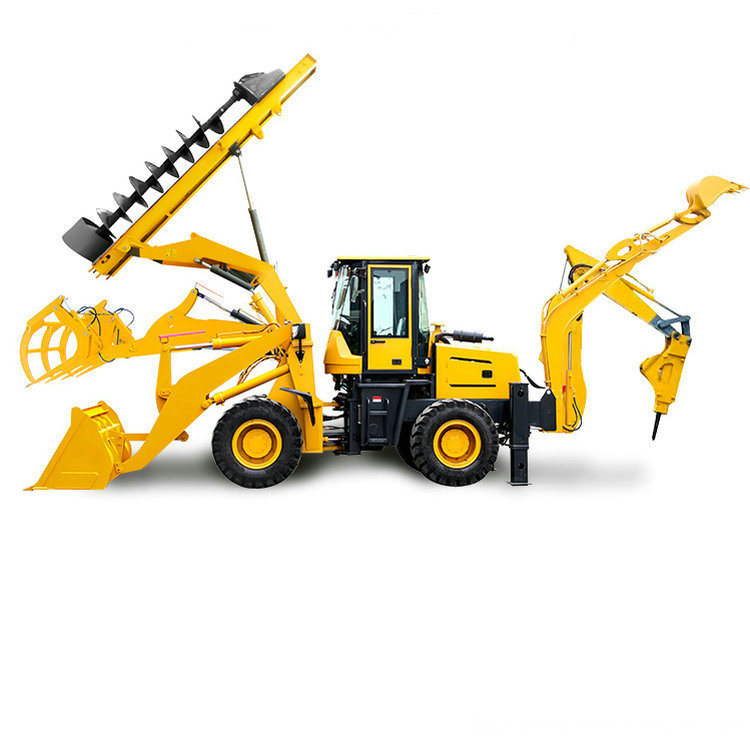

  • HW10-20 series Small Excavator features, the original loading function is not affected during scraping, the excavation part is folded as the counterweight, and the loading part is used as the chassis support during excavation. The two parts do not affect each other and can help each other.
